ABOUT CHANGZHOU NEW HEAVEN AND EARTH PARK

1. Where was it? (exact name of the city, park, etc…) = CHANGZHOU NEW HEAVEN AND EARTH PARK, ADDRESS: HUTANG TOWN, WUJIN, CHANGZHOU, JIANGSU, CHINA

2. When was it? (the date/s) = 2008. 9. 26

3. How long did it take to build/install? = PROJECT INSTALLATION 30 DAYS (INCLUDING FIRE FLAME INSTALLATION 10 DAYS)

4. How long did it take to design the project? = 3 DAYS

5. How many workers worked to build/install? = FACTORY PRODUCING AND MACHINING 30 DAYS, FIELD INSTALLATION 30 DAYS BY 10 WORKERS.

6. How wide(in meters) is the musical fountain? = LENGTH: 90 METERS, WIDETH: 8 METERS

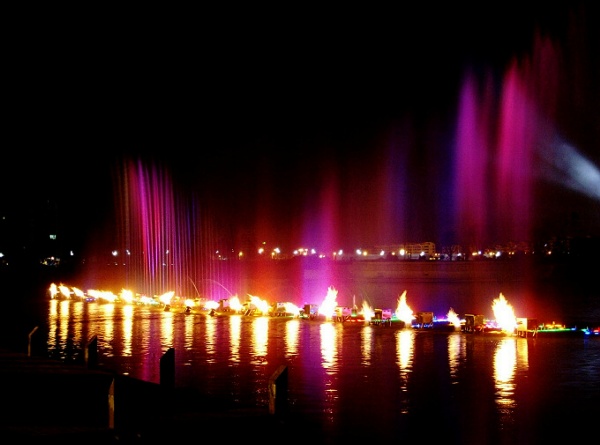

7. At what height (in meters) are the fire flames located? =POLE FIRE FLAME NOZZLE 6 SETS, POLE HEIGHT 13 METERS, FIRE FLAME EQUIPEMNT SIZE: 1200x1200x1200MM, FIREBALL DIAMETER 1.5-3 METERS.
FIRE AND WATER MINGLE NOZZLE 18 SETS, FIRE FLAME HEIGHT 6-8 METERS, LIQUID GAS OR NATURAL GAS OR PROPANE GAS, PRESSURE 4.5-6KGS

8. What’s the total height of the TV tower? =228 METERS

9 What’s the middle round part height of the TV tower? = SIGHTSEEING STAGE 188 METERS

10. How many pumps were used for this Aquatic show? =WATER PUMPD 157PCS, TOTAL POWER 720KW, LIGHTING 1420PCS, NOZZLE 1161PCS.

11. How powerful is the laser? =THE LASER FOR TV TOWER IS 30W, THE GREEN LASER FOR FOUNTAIN IS 5W.

12. How many fire flame units were used? = POLE FIRE FLAME NOZZLE 6 SETS, FIRE AND WATER MINGLE NOZZLE 18 SETS

13. How many people assisted the first show? =3 PEOPLE ASSISTED FROM OUR COMPANY THE FIRST SHOW, THERE WERE ABOUT 30,000 SPECTATORS

14.How many people have already seen the show? The estimation you can find out from the municipality. = ABOUT 900,000 SPECTATORS PER YEAR, PEACETIME OPEN AT EVERY FRIDAY, SATURDAY, SUNDAY AND ANY SPECIAL EVENTS, ABOUT 12,000 SPECTATORS PER /WEEKEND. EVERY WEEK APIECE GOVEREMNT DEPARTMENT PARTY ORGANISES 1 HOUR PROGRAMM.

15. What was the total cost of the project? = USD4,000,000.00

16.Do you manufacture yourself parts, such as: nozzles, connectors, etc…? Except the submersible pumps (which I believe come from external supplier and you modify them according to requested needs). =EXCEPT THE SUBMERSIBLE PUMP, CABLES, THE ASSCSSORIES OF THE CONTROLLER, MOST OTHER PARTS ARE MANUFACTURED BY OURSELVES.

ralated video: http://www.firstfountain.com/showvideo.asp?news_id=13
